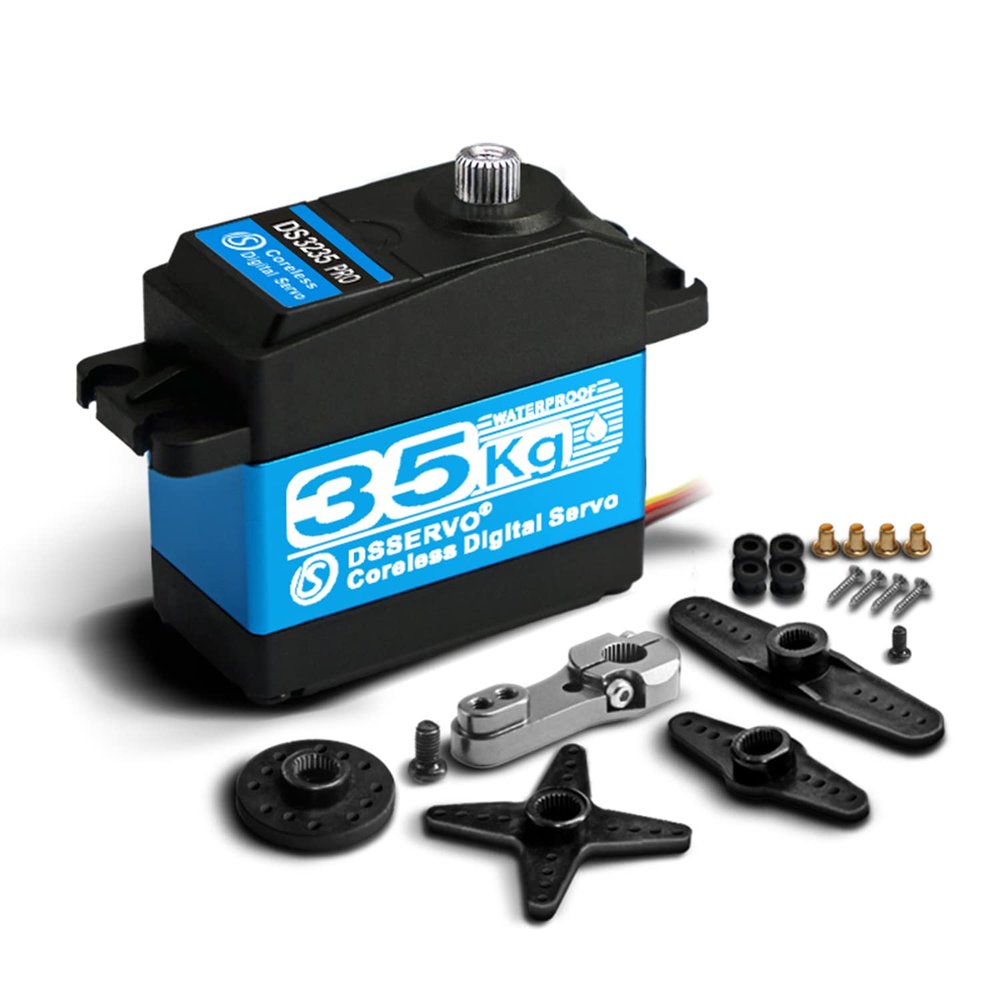

ZOSKAY RC Servo 35kg PRO Coreless Motor servo Metal Gear Digital and Stainless Steel Gear servo RC servo for Robotic DIY RC car (180 Degree)

Description

• 35KG Pro servo great upgrade Coreless High Speed and Torque:45kg.cm,0.08sec/60@8.4
• Servo application scope1/8, 1/10, 1/12 Truck, RC Car / Robot / Boat.
• Standard size 1.58x0.79x1.60inch (40x20x40.5mm) Weight:60 g (2.12 oz).
• High Torque Coreless gear, Less noise, light weight, Running degree 1803(PWM 5002500usec)
• DIY digital Servo for software for robot parts, RC Helicopters, small robots, and other models Such as mechanical arm

Torque :31kg.cm@5v, 41kg.cm@7.4v,45kg.cm@8.4v
Speed:0.14sec/60@5v,0.09sec/60@74,0.08sec/60@8.4
Waterproof :IP66
Features : Coreless High Speed and Torque,High Power
Apply Environmental Conditon:
1.Storage Temperature Range:-30C~80C
2.Operating Temperature Range:-25C~70C
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g2g
3. Limit angle: 360
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm5mm
8.Motor: Coreless brush motor
Electrical Specification:
1.Working voltage range: 5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 5002500usec
5.Neutral position: 1500usec
6.Running degree: 1803(PWM 5002500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 10002000usec)
Packing List:
1x 35kg PRO digital servo
1x 25T adjustable metal servo arm
1x accessory bag
