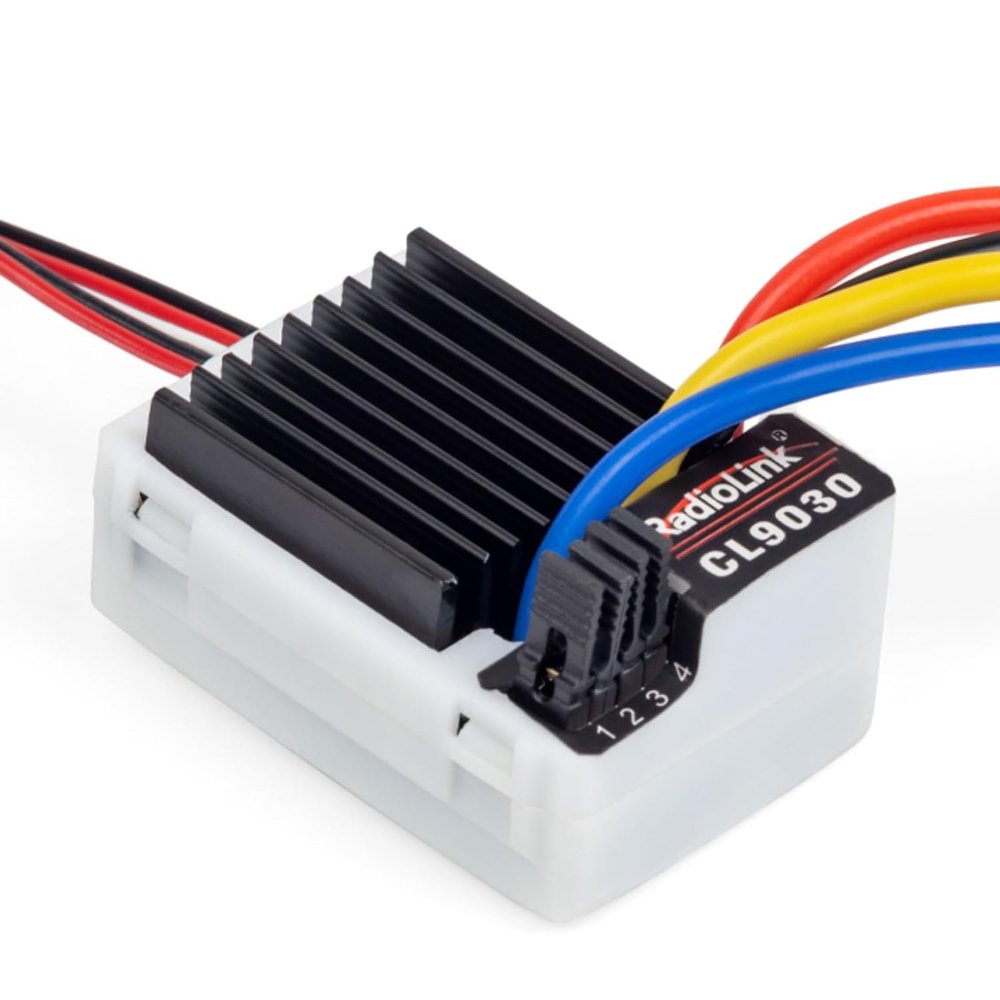

Radiolink Cool 9030 ESC 90A Brushed (2-4S) Waterproof Built-in BEC 5A Selectable 5.5V/7.5V for 1/10 RC Truck Crawlers Tanks Cars Bait Boats (XT60 Plug)

Description

• - : @18V constant output current, with built-in BEC output voltage selectable @5.5V / @7.5V. No matter it is a 2S or 4S battery, it always maintains stable voltage output even in the case of instantaneous high current. COOL9030 can easily drive all kinds of standard and high-voltage servos and other external electrical equipment.
• : With a 32-bit high-speed chip, high-frequency switch-mode chip from MPS, and 20 years of circuit design experience, COOL9030 makes the throttle sensitivity up to . Linear smooth control both forward and reverse is perfect for RC crawlers, drifting cars, and monster trucks.
• : Boat Mode, Training Mode, Racing Mode, and Crawler Mode. Can be set up easily through the jumper cap.
• : Input voltage range 6-16.8V(NI-MH, Ni-Cd or lead-acid battery), 6-18V(2-4S, Lithium Battery).
• , - and : Low voltage cut-off Protection for battery. Over-heating Protection. Over-input voltage Protection.

Features:

1.Built-in switching regulator BEC, the output voltage can be set to 5.5V or 7.5V, easily drive all kinds of standard and high-voltage servos and other external electrical equipment like light and winch.

2.Constant Current 90A, support 2S-4S lithium battery or 5-12 NIMH batteries. Max output current 3A maintains a stable voltage output of 5.2V even in the case of instantaneous high current.

3.Extremely low internal resistance reduce the heat, effectively solve the problem of serious heat generation in a closed cabin for a long time. The maximum withstand current is up to 300A, and the maximum withstands temperature is 150 degrees.

4.Multiple Protection: water-proof protection, battery over discharge protection, over-temperature protection, abnormal voltage input protection, could protect your equipment all-round.

5.Four Working Modes:Forward/Reverse without Brake; Forward/Reverse with brake; forward and brake; forward/Reverse and brake at the neutral zone.

6.32bits high-speed chip makes the throttle sensitivity up to 2000, perfectly compatible with most cars and boats including both twin-engine models like crawlers, drifting cars, tractor trucks, bait boats, 1/10th scale touring cars, buggies, monster trucks, or tanks, etc.

Specifications:

Model: COOL9030

Constant Current: 90A@18V

Peak Current: 100A

BEC Voltage:3A@5.5V, 3A@7.5V

Input Voltage:6~16.8V(NI-MH, Ni-Cd or lead-acid battery); 6~18V(Lithium Battery

Low Voltage Protection: 6.5V@2S , 9.75V@3S ,13.0V@4S

Internal Resistance: 7 milli-ohm

Constant Temperature of PCB: 100C

Plug Input: XT60

Plug Output: Receptacle disconnectors

Motor Limit: Brushed Motor Limit with 380/540/550/560/570

Drive Frequency: PWM frequency 2KHz

ESC Modes: 5

Dimensions: 46.6*35.6*21mm

Weight: 49g

Compatible Models: All kinds of rc car and boats
