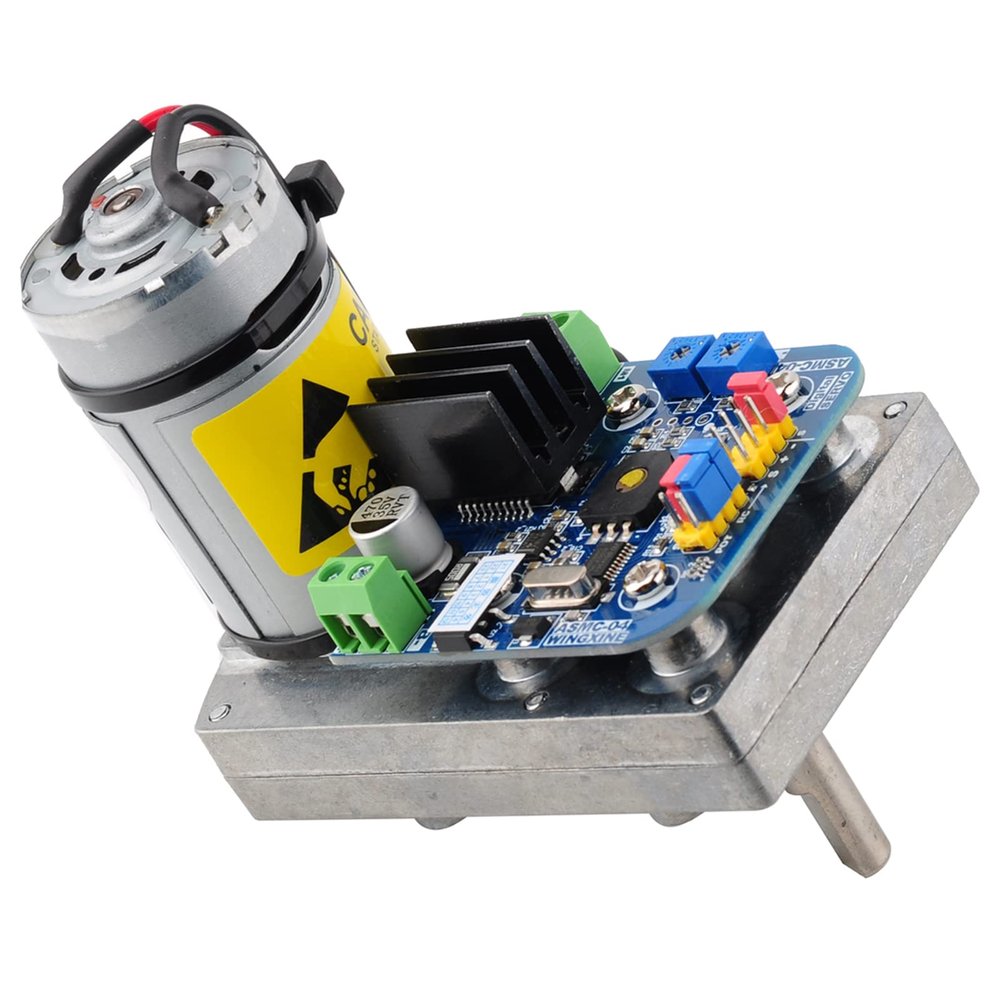

Wishiot ASMC-05B Robot Servo High Power High Torque Support 12V~24V 180kg.cm Large Robotic Manipulator for RC Smart Car Quadcopter (1)

Description

• Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
• Large Torque: maximum torque is up to 180kg.cm (24V) (measured, non-theoretical value)
• Rotation angle: 300 MAX, meaning that the maximum stroke of 300 degrees (0 to 300 adjustable electronic limit)
• Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.Our stability control servo rudder opportunity to work in a safe torque within
• Please feel free to ask any questions you may have and will respond within 24 hours. We will give you a satisfactory solution

Description:
Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.
Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.

Technical Parameters:
Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)
No-load rotational current: <500mA
Maximum torque: 180kg.cm (24V) (measured, non-theoretical value)
1764N.cm (24V) (measured, non-theoretical value)
90kg.cm (12V) (measured, non-theoretical value)
882N.cm (12V) (measured, non-theoretical value)

Angular speed: 0.5s / 60 (60 degrees of rotation required 0.5s), 24V time;
1.0s / 60 (60 degrees of rotation required 1.0s), at 12V;
Rotation angle: 300 MAX, meaning that the maximum stroke of 300 degrees (0 to 300 adjustable electronic limit)
Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms fits all "multi-channel servo controller", "1ms-2ms model aircraft remote control", "SCM", and so on;
Voltage signal input range: 0V to + 5V
Control accuracy: 0.32
Weight: 530g
Gear Material: Steel
Dimensions: 95.5mm X 60.5mm X 102.6mm

Packet includes::
1 X ASMC-05B Servo
