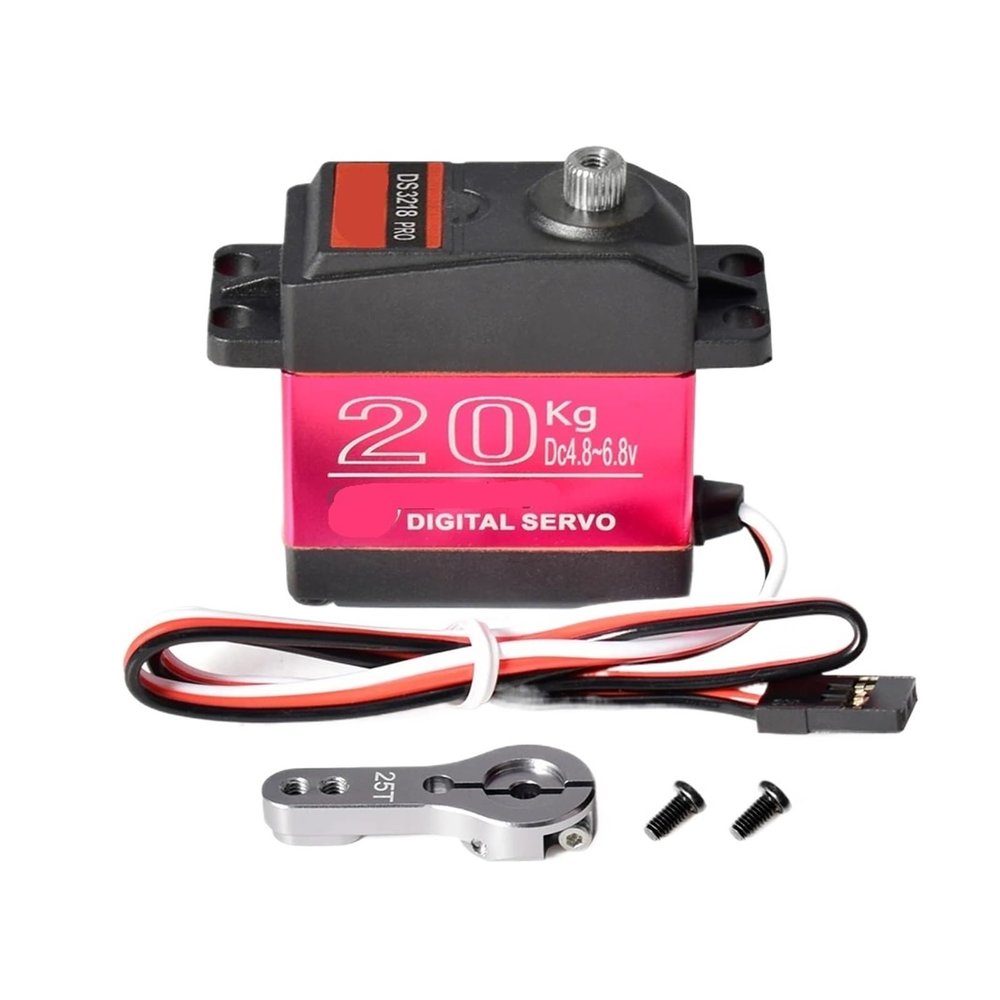

Waterproof Remote Control servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degrees Suitable for 1/8 1/10 1/12 Metal Gear Digital servo(DS3218MG pro 180)

Description

• Servos

Servos
Specification:
Model: DS3218MG Product Name: DS3218MG Digital Servo
Rotation angle: 180 degrees, 270 degrees optional
Dead zone: 3 seconds
Working voltage: 4.8V~6.8V
Working speed (5V): 0.16 seconds/60 when no load
Operating speed (6.8V): 0.14 seconds/60 when no load
Stall Torque (5V): 19 kg/cm (263.8 oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Motor type: Carbon brush motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz

Size: 405*40*20mm
Weight: 60 g
Model: DS3218MG pro Product Name: DS3218MG pro digital servo
Rotation angle: 180 degrees, 270 degrees optional
Dead zone: 3 seconds
Working voltage: 5.0V~6.8V
Working speed (5V): 0.12 seconds/60 when no load
Working speed (6.8V): 0.09 seconds/60 without load
Stall torque (5V): 21 kg/cm
Stall torque (6.8V): 23.5 kg/cm
Motor type: Carbon brush motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz

Size: 405*40*20mm
Weight: 60 g
Model: DS3225MG Product Name: DS3225MG Digital Servo
Rotation angle: 180 degrees, 270 degrees optional
Dead zone: 3 seconds
Working voltage: 4.8V~6.8V
Working speed (5V): 0.15 seconds/60 when no load
Working speed (6.8V): 0.13 seconds/60 when no load
Stall Torque (5V): 21 kg/cm (263.8 oz/in)
Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in)
Motor type: DC motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz

Dimensions 405 * 40 * 20 mm (1.58 x 0.79 x 1.60 in)
Weight: 60 g
Model: DS3235MG Product Name: DS3235MG Digital Servo
Rotation angle: 180 degrees, 270 degrees optional
Working voltage range: 5-7.4V Working speed (no load): 0.13 seconds/60 degrees @5.0V
Working speed (no load): 0.12 seconds/60 degrees @ 6.0V
Running speed (no load): 0.11 seconds/60 degrees @ 7.4V
Stall torque (locked): 29kg/cm @5.0V
Stall torque (locked): 32kg/cm @6.0V
