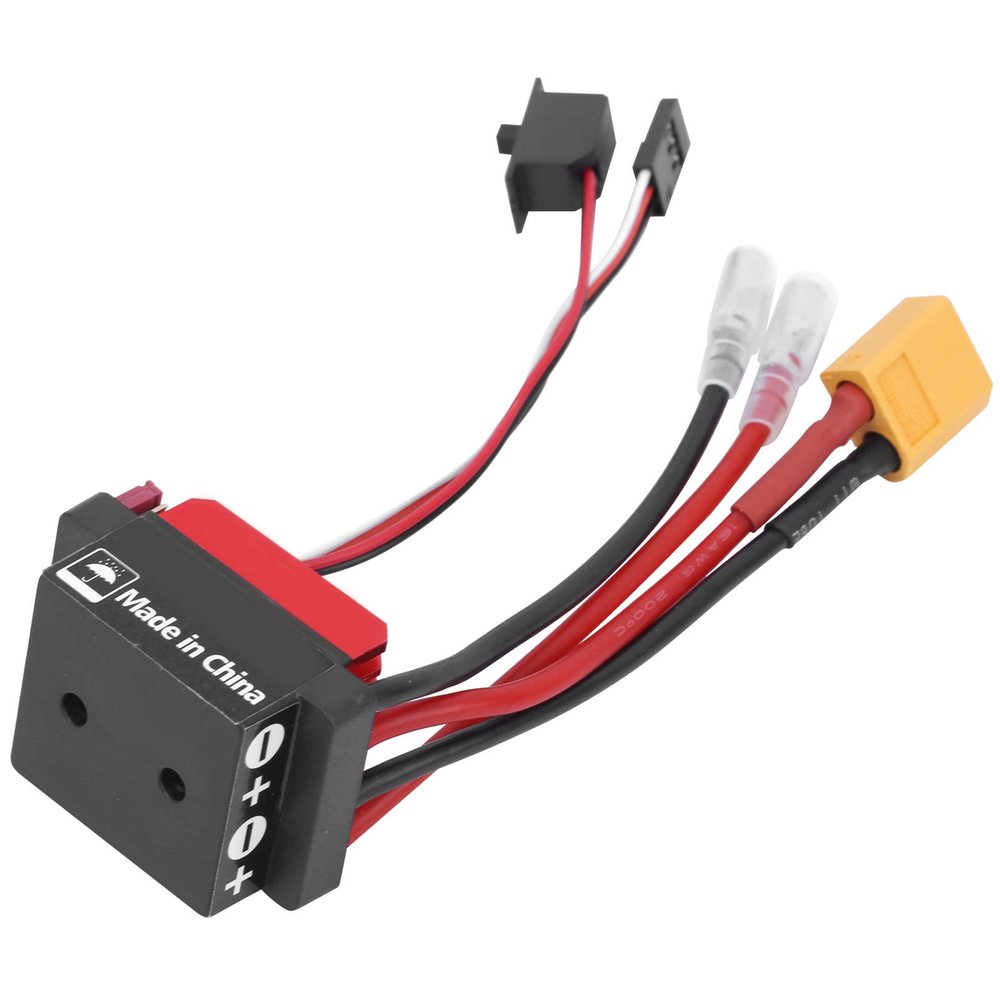

VBESTLIFE 360A RC Electronic Speed Controller, Aluminum Alloy ESC with Bidirectional Brake for 1/10 Crawler Truck Car RC Vehicles (XT60 Plug)

Description

• Using wire jumper cover, setting model timely battery type, simple and clear.
• Automatic throttle stroke adjustment, throttle middle automatic calibration, simple and convenient, easy to use.
• This esc has mode of bidirectional with brake/bidirectional climbing drag brake, suitable for all kinds of vehicle .
• Has multiple functions, such as low-voltage of lithium battery, automatic detection of battery number, high temperature , throttle loss and so on.
• Made of aluminum alloy heat dissipation, and long service life.

Specification:
Condition: Brand New
Item Type: 360A Electronic Speed Controller
Model: Brush-X60
Material: Aluminum Alloy + Plastic
Color: Black Red
Optional : T Plug, Plug, For Plug
Forward Continuous Current/Peak Current?60A / 360A
Reverse Continuous Current/Peak Current?30A / 180A
Voltage Range?2?3S lipo or 5?9 nimh
Engine Limit:
2S lipo or 6 nimh?540 or 550 Engine Size??12T or rpm 3S lipo or 9 nimh?540 or 550 Engine Size??18T or rpm Resistance?Fwd0.001?, 0.002?
Bec Output?2A / 6V)Linear Voltage Stabilization Switch)
Model?Bidirectional/Climbing
Suitable Vehicle: 1/10 RV, Car, Short Truck, Truck, Truck, Crawler Car,
Suitable for hsp/redcat///hpi/axial Brand Car Using
Size: Approx. 43x29x26mm/1.69x1.14x1.02inch

Package List:
1 x 360A Electronic Speed Controller
1 x Manual

Note:
1. Manual measurement, allowable error, thank you?
2. The image may not reflect the actual color of the project due to differences between different displays
3. This product does not have the function of erse connection of electric adjustment. If the erse connection of power supply may cause irreversible damage to electric adjustment and battery instantly, please pay special attention to the polarity of battery when using
4. If the motor steering is wrong, please switch the two motor wires. The motor wire is not divided into positive and negative poles
