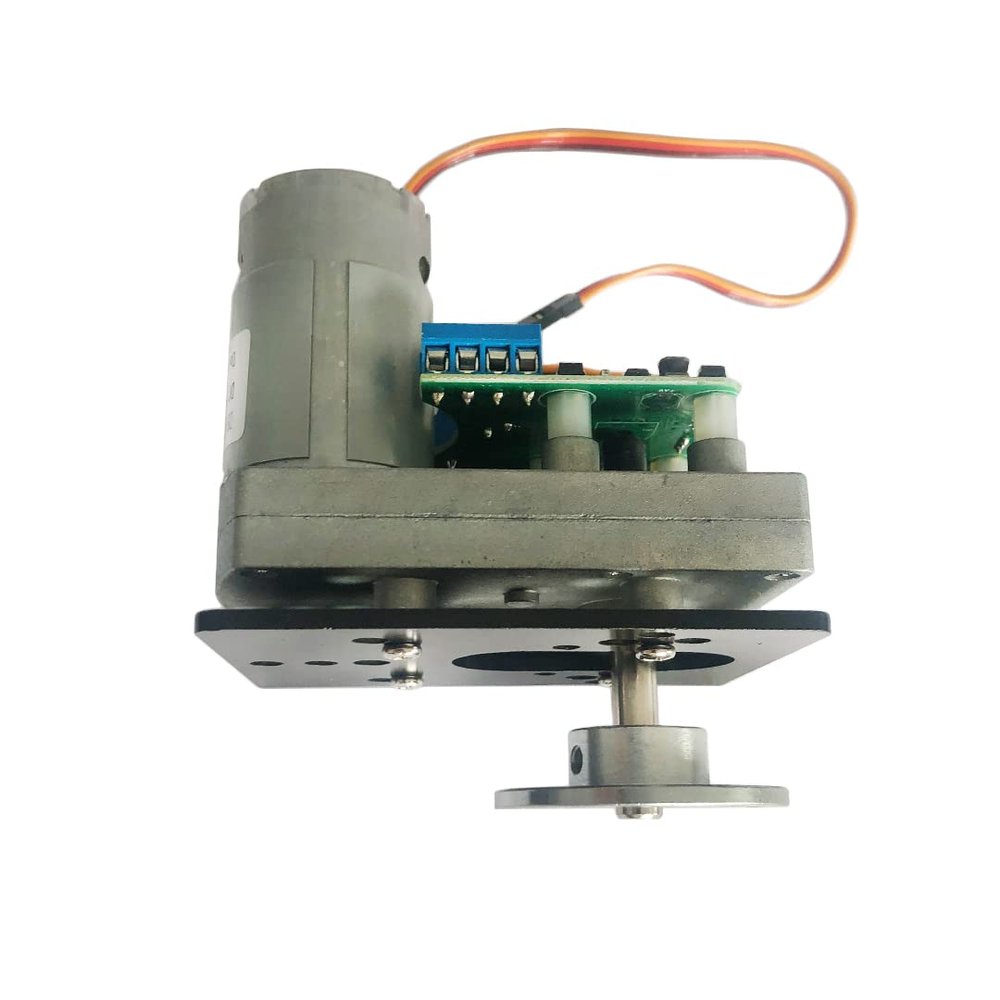

Steering Engine Servo Roboter Arm Motor 380kg.cm Magnetic Encoding High Precision Steel Gear Digital Servo Motor - (Speed(RPM): 180Kg.cm/Voltage(V): 24V)

Description

• Speed(RPM): 180Kg.cm; Voltage(V): 24V
• Continuous Current(A): 0.5A
• Commutation: Brush
• Type: Gear Motor

Item Description:
Specification
Package including:
1) DC Gear Motor with encoder
2) Wheel
3) Bracket
Working frequency: 50 Hz
No load rotating current: 500mA
Angular velocity:
0.5 s / 60 (it takes 0.5 s to turn 60 ), when it is 24 V;
1.0 s / 60 (it takes 1.0 s to turn 60 ), at 12V;
Input mode: pulse signal (te control, multi-channel steering gear controller, single-chip microcomputer)
Pulse signal input range: 0.5ms-2.5ms, suitable for all "multi-channel steering gear controller", "1ms-2ms aircraft model te controller", "MCU programming", " ", ;
Input voltage range: 5V
Control accuracy: 0.32 degree
Weight: 530g
Gear material: Steel
Dimension: 95.5mm x 60.5mm x 102.6mm
Power input: 12v-24vdc (- connect negative pole and + connect positive pole)
Motor output: m-connected to motor negative pole, M + to motor positive pole
Motor speed regulation input: to control the angular speed of steering gear.
Angle adjustment input: to control the angle range of steering gear.
Mode selection: jumper cap set pulse signal input angle control or 360 continuous rotation. PWM is pulse signal input.
Control mode: angle input signal is PWM, potentiometer can be to control the motor shaft angle position. The pulse width is 0.5ms-2.5ms or 1ms-2ms.
PWM control mode: angle input signal is digital square wave signal with pulse width of 0.5ms-2.5ms or 1ms-2ms.
Notice:
Item Specification:

Continuous Current(A): 0.5A
Commutation: Brush
Type: Gear Motor
Torque: 180KG/380KG
