Midzooparts S500 500mm Carbon Fiber Quadcopter Kit with 2212 920KV Brushless Motors, 30A Simonk ESC, 1045 Propellers - Adult Hobbyist Drone Frame

Description

• S500 500mm PCB Quadcopter Frame Kit 2212 920KV Brushless Motor 30A Simonk ESC 1045 Propeller

S500 PCB Frame Kit 500mm PCB Board Carbon Fiber Landing Gear F FPV Quadcopter

Features:

- F550 upgrade quadcopter

- Learned arm design from DJI S800 EVO, and enhanced

- good work with Gopro Hero 3 2 Axis brushless gimbal for FPV

- PCB Center plate with solder point

- Frame only, no electronic parts.


2212 920kv Motor:

- Type : 22 x 12mm

- KV: 920rpm/V

- Voltage: DC 7-12V


30A Brushless ESC

Highest efficiency 100% N-FET design.
Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).
No low voltage cutoff, because any cutoff in a multirotor = crash.
No over temp cutoff, because any cutoff in a multirotor = crash.
Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
Super simple, foolproof operation! Nothing to program other than the throttle range.
Don't buy a 30A multirotor ESC that doesn't meet all these criteria! There are a lot of low quality 30A ESC out there!

ESC Specification
Cont Current: 30A
Burst Current: 35A
BEC Model: Linear mode
BEC Output: 5V2A
Li-ion/Li0poly:2-4S,or Ni-MH/Ni-Cd:4-12NIMH
Weight: 25g
Size: 32*24*7mm

Can be programmed by yourself!
And solder 3.5mm banana connector on it already.

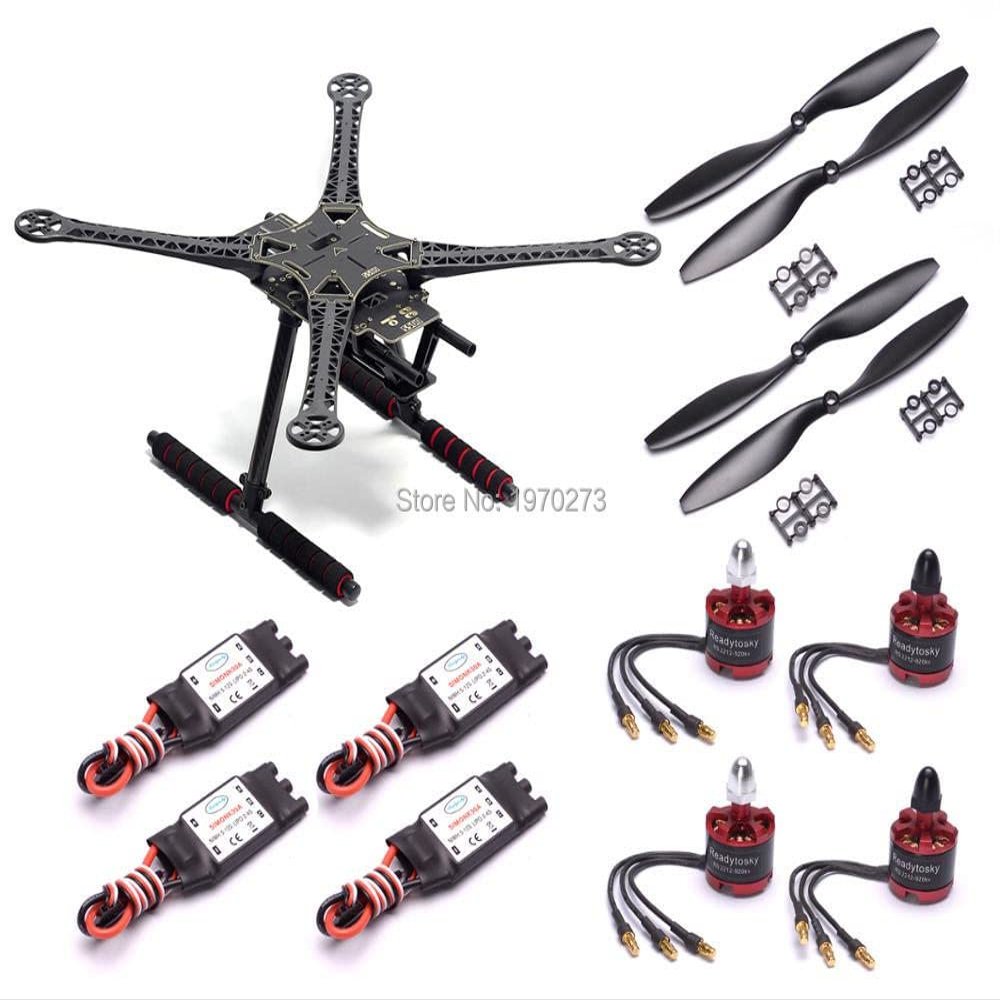

Package Included:
1 x S500 Quadcopter Frame Kit w/ Carbon Fiber Landing Gear (PCB version)
4 x 2212 920kv Motor (2pcs CW, 2pcs CCW)
4 x 30A Simonk ESC
2 pairs 1045 propeller
