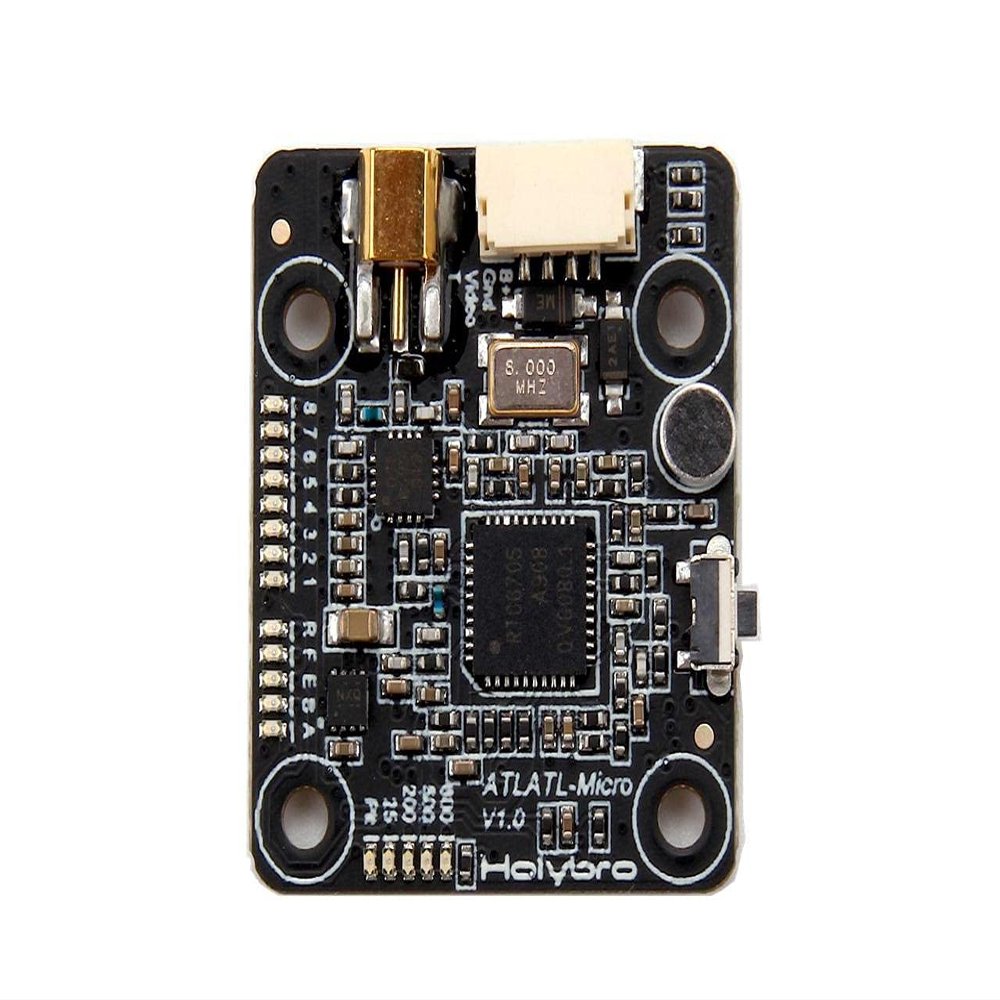

Leslied Atlatl HV Micro V1.0 5.8G 40CH 25/200/500/800mW Switchable VTX FPV Transmitter for RC Drone RP-SMA Male

Description

Atlatl HV micro V 1.0 5.8G 40CH 25/200/500/800mW Switchable VTX FPV Transmitter Specification: Brand
Name:
Model: Atlatl HV micro V 1.0
Item Name: 5.8G 40CH 25/200/500/800mW Switchable FPV Transmitter Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
Audio: 6.5 MHz Mono
Antenna Connector: MMCX
Input Voltage: 7 to 21 volts (2-4S LiPo) with absolute maximum 30 volts
Dimensions: 30x26x7mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 3.6 g
Features: - Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc. -
Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband. - SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more. - All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used. - MMCX connector is durable and easy to use. Rated for 100 s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors. - LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad. - Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle. - 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air. - Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.

- Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
Package Included: 1x VTX Board 1x 80mm SMA MMCX Cable 1x 150mm 4pin JST GH Wire
