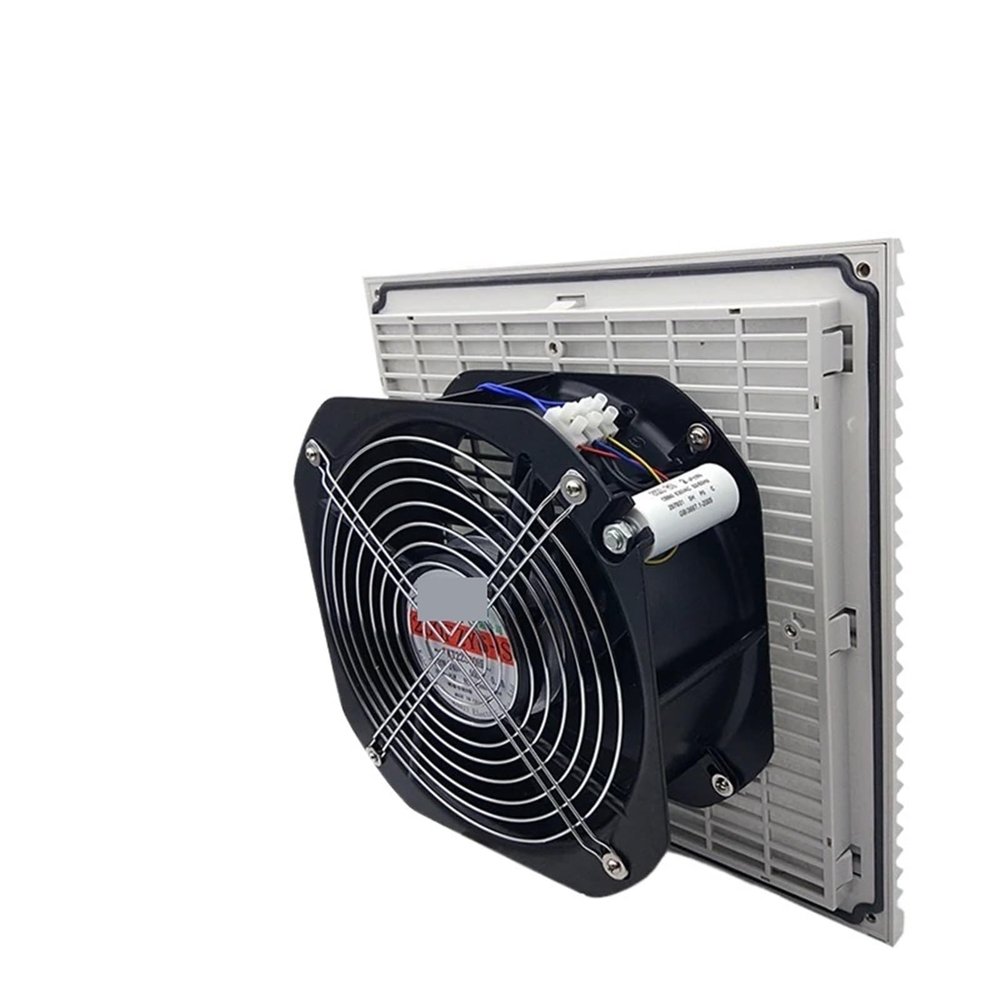

KT9806 AC 220V / 380V High Speed AC Condenser Dual Ball Bearing Cooling Fan for 320 * 320mm Ventilation with Metal Guard(AC 380V)

Description

• Filters
• KT9806 AC 220V / 380V High Speed AC Condenser dual ball bearing Cooling Fan for 320*320mm Ventilation with metal guard

Filters
Note:
It comprises of a axial fan, a protective housing on the front and rear surfaces and filter designed to retain dust particles.
The filters that equip the fans must be cleaned and replaced regularly.
This filter can be replaced during operation without risk of touch with the rotating part.
Material of filter pad: 200g/ M3 nylon fiber compound, Filtration efficiency up to 89%.
Operation Temperature/Humidity Range: (under unconcretionary state) -20C ~ +70C (temperature), 0% ~ 95% (himidity)
RAL 7035 grey is the standard offer with the possibility to change to RAL 7032 by means of a replacement grille.
Bear in mind the pressure losses caused by the outlet element (grille with filter, ventilation louvre or simple opening) when determining the fan flow rate.
Protection class: E N 60529 IP 54 (not suitable for outdoor equipment).
==========
High-concerned chemical : None
Model Number : KT9806
Type : Ventilation
Power : AC
Rated Voltage : 220V/380V
Match the fan size : 225*225*80 (mm)
Overall dimensions : 320*320*115 (mm)
Frequency : 50/60Hz
Sleeve bearing Expected life span : 30000hrs at 40 C
Wattage : Under 500W
Max. noise : 48/50dB
