HTLNUZD Radiomaster TX16S MK3 RC Transmitter, ExpressLRS Gemini Dual Band 2.4GHz 900MHz, V6 Hall Gimbal 5" IPS Touchscreen RC Radio Controller

Description

• High Performance ChipBuilt-in STM32 H7 MCU delivers strong processing power for FPV RC radio controller stable operation
• 5 Inch IPS Touchscreen800480 high-definition display with auto backlight adjustment for indoor and outdoor viewing
• V6 Hall GimbalQuad-bearing precision Hall sensor gimbal with customizable RGB light rings via LUA control
• Dual Band ELRSIntegrated Gemini 2.4GHz & 900MHz dual band module with foldable antennas for steady signal
• Premium Cooling & ExpandabilityAluminum heat sink + low-noise fan; support SD card storage and modular switch panels

Specification
Item: TX16S MK3 Radio Controller
Color: Black / Transparent Charcoal
Voltage Range: 6.6 - 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)
MicroSD Card Slot: Yes (card not included)
Built-in Flash: Yes
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery)

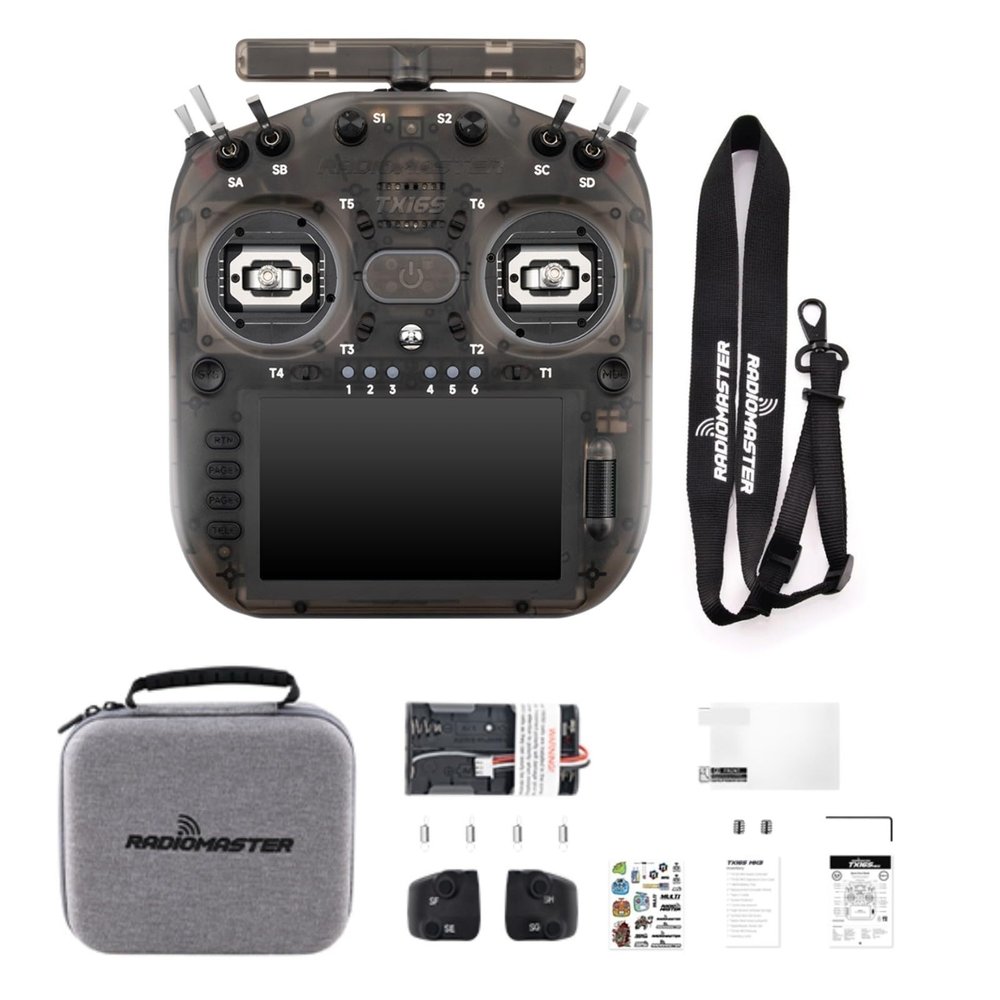

Package Includes
1 * TX16S MK3 Radio Controller
1 * TX16S MK3 Signature Carry Case
1 * 18650 Battery Tray
2 * Replacement Shoulder Panels
1 * Type-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * Low Tension Gimbals Springs
2 * Gimbal Stick Set Screws
1 * Nylon Neck Strap (Lanyard)
1 * RadioMaster Sticker Set
1 * TX16S MK3 Manual
1 * Inventory Card
